Full Size (II)

Siemens Arcadis Varic

Compact, ergonomic and flexibile. This C-Arm is most selected for use in pain, spine and orthopedic applications.


II Size: 9"
Max Power: 2.3 kW

More Info
Philips BV Pulsera

Robust and customizable, valued for its power and economic cost. Widely used for multipurpose applications that require extended, powerful penetration.

II Size: 9" or 12"
Max Power: 7.5 or 15 kW

More Info
Siemens Arcadis Avantic

Most powerful and largest II based system on the market. Used for all applications, but is most valued for Vascular.


II Size: 13"
Max Power: 25 kW

More Info

Full Size (FD)

Philips Veradius

Digital Flat Detector for exceptional image quality at lower dose. Perfect for any clinical application.

FD Size: 10.3"
Max Power: 15 kW

More Info
Philips Veradius Neo

Improved C design that is especially helpful for accommodating bariatric patients and larger areas of anatomy.

FD Size: 10.3"
Max Power: 15 kW

More Info
Philips Veradius Unity

All new touchscreen tablet user interface for exceptional ease of use during image acquisition and postprocessing.

FD Size: 10.3"
Max Power: 15 kW

More Info

Cart

Cart Empty

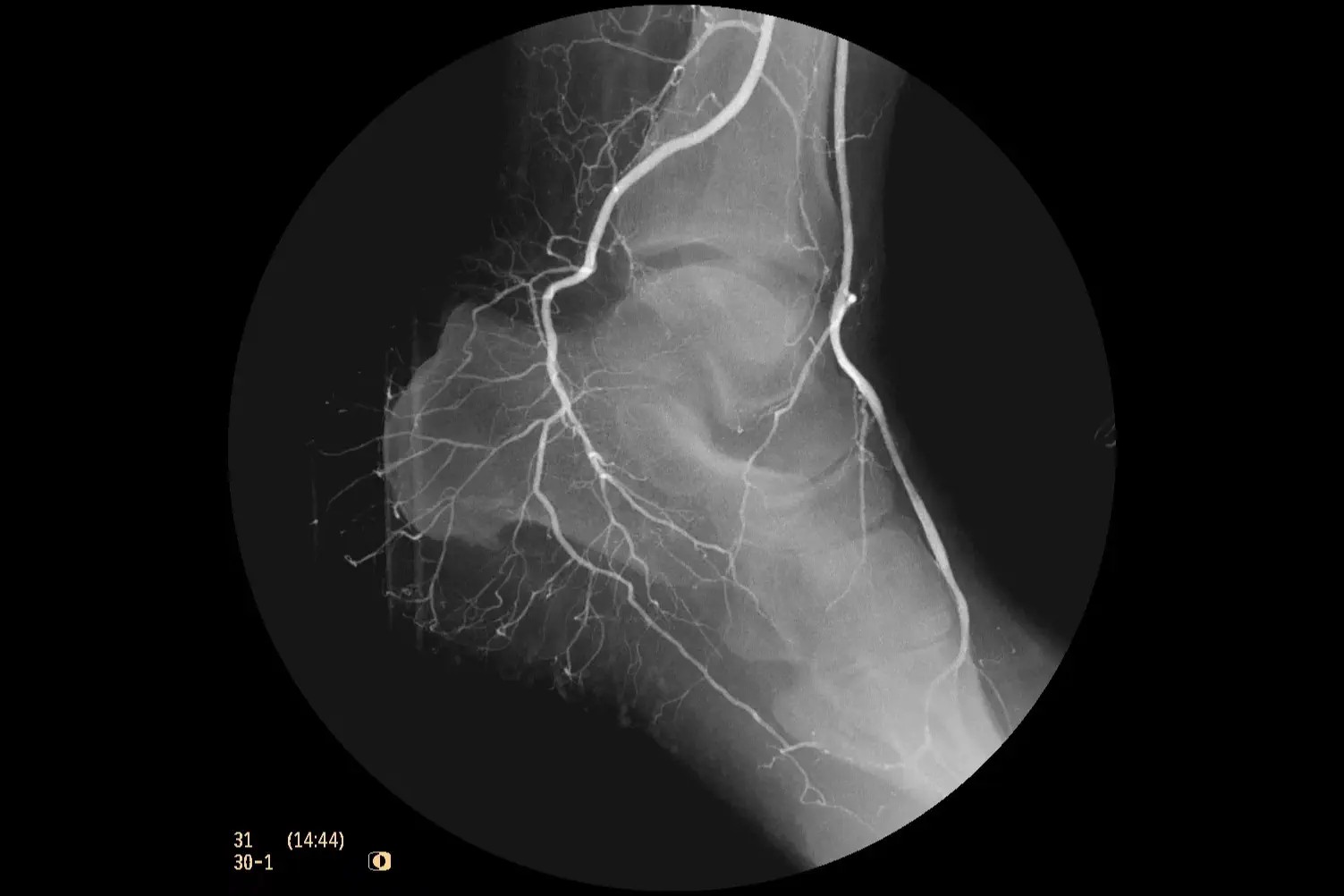

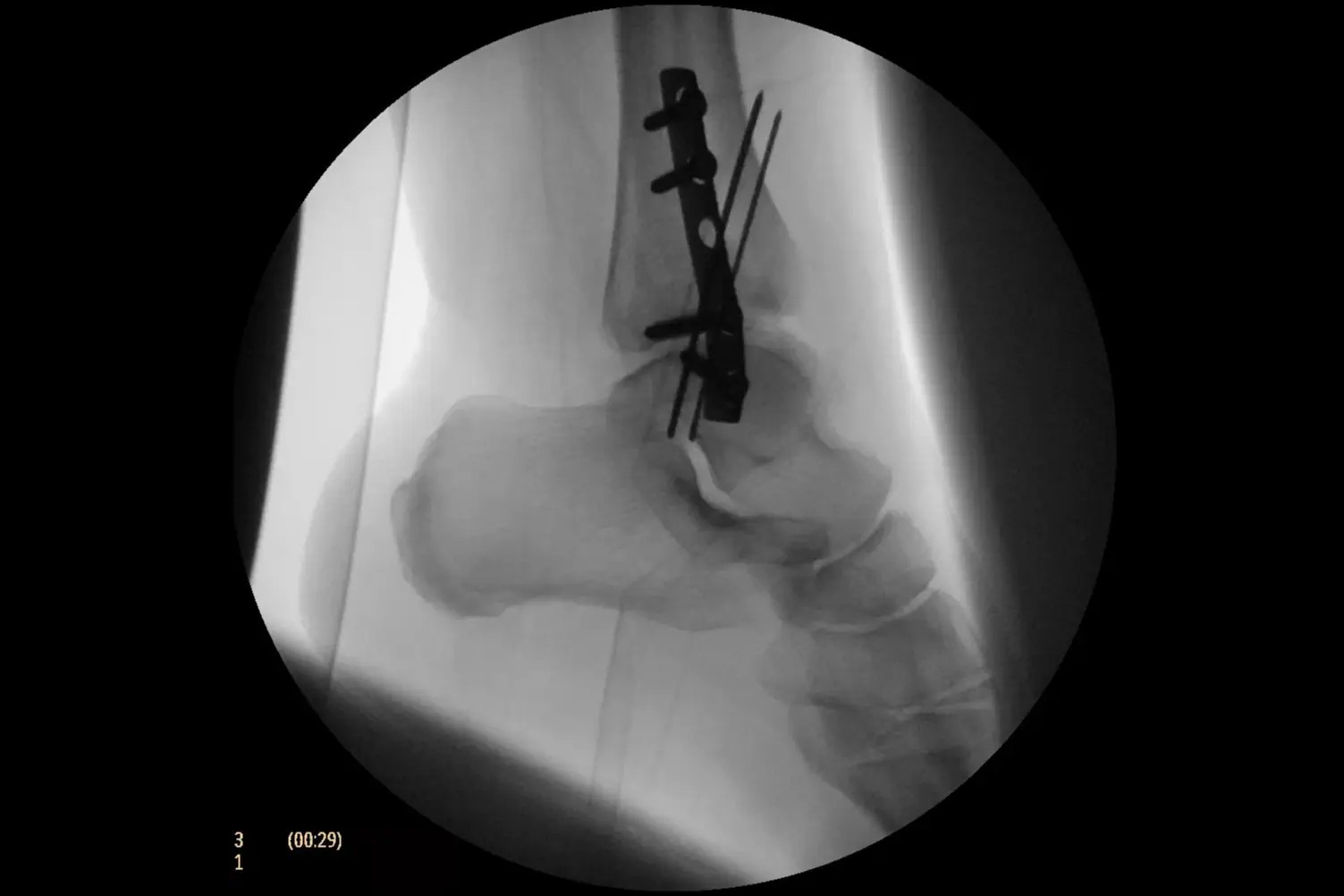

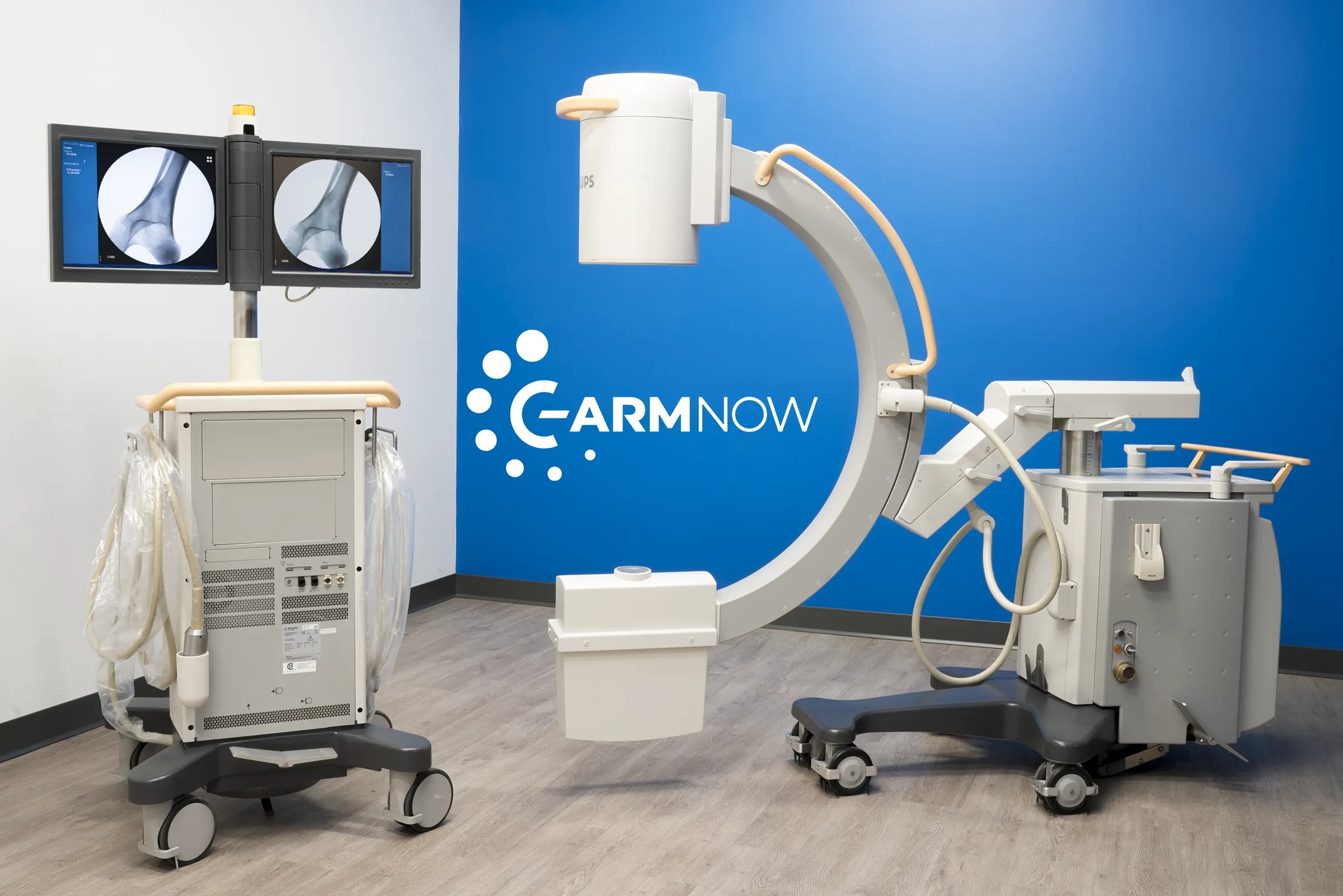

The Philips BV Pulsera C-Arm has the high image quality and power you need to provide critical insight into complex vasculature, dense anatomy, and obese patients. The system offers a 9” or 12” image intensifier and a 7.5 kW or 15 kW generator. The Pulsera comes equipped with a powerful rotating anode to support a steady stream of uninterrupted imaging when performing long interventions or open surgery.

It is truly a versatile system that is capable of excelling during the most demanding interventional procedures such as Pain Management, General, Orthopedic, Vascular, NeuroVascular and Cardiac surgeries. Speciality packages available for vascular procedures with different fluoroscopy and exposure frame rates and optional acquisition modes. This C-Arm is our most economic offering and can be customized to fit your clinical needs.

Specifications Datasheet

X-ray Generation
Tube
Rotating anode tube with active heat management
Nominal Power
7.5kW: 120kV, 60mA OR 15kW: 120kV, 125mA
Imaging

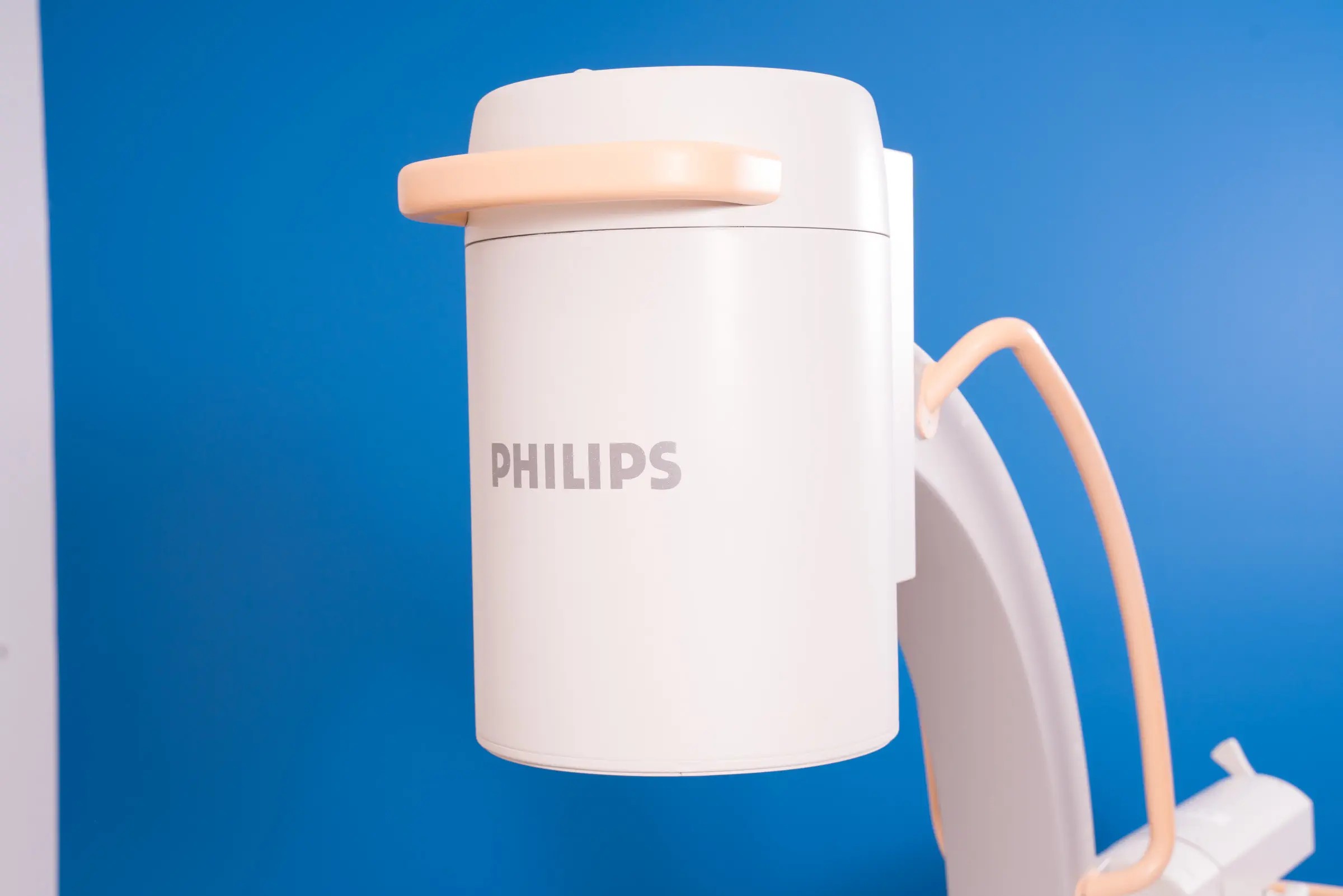

Image intensifier
Triple mode 9" HRC OR Triple mode 12"
II formats
9”, 7”, and 5” OR 12”, 9”, and 7”
Camera
High Resolution CCD
User Interface
Monitors
Two 17" LCD Flat Panel
Touchscreen
(Primary monitor only)
Geometry
Free space within C-arm
77 cm (30.3”)
Angulation
+90° to -25°
C-arm depth
61 cm (24.0”)
Source Image Distance
98 cm (38.7”)
Rotation
± 180°, with safety stop at ± 135°
Lowest lateral working position
102 cm (40.0”)
Connectivity
Video Output
BNC, HDMI(Optional)
Networking (DICOM Optional)
Wired
Other
USB(Image Export), S-Video Input
Dimensions
C-Arm
71" H x 35" W x 77" L
C-Arm Weight
695 lbs
Workstation
69" H x 32" W x 37" D
Workstation Weight
430 lbs
Request a Quote
Term
Save up to 25% on 5 Years!
II Size
Generator
Ortho/Pain Package
Vascular Package
Cardiac Package
Paper Printer
DVD Recorder
Ext Video Output
DICOM Package
Philips BV Pulsera
Photos Description Specifications
